Leimec JETPulse

Leimec JETPulse units are heavy-duty, high-efficiency industrial pulse-clean dust collectors engineered for manufacturing environments with extreme particulate loads. Specially designed to be connected upstream from a ventilation unit, the JETPulse captures high-concentration heavy dust and abrasive particles to protect downstream HVAC equipment, prevent heat exchanger clogging, and guarantee optimal thermal recovery performance.

Leimec JETPulse

Key Benefits

  • Value-engineered compactness: High-volume filtration within a minimal footprint that is easy to position anywhere indoor or outdoor
  • Streamlined maintenance: Quick-access service panels, a rapid-empty dust bin, and easy filter replacements based on differential pressure drop indicators
  • Economical plant upgrade: Cost-effective standalone or inline solution to clean airflows in new facilities or retrofitted plant upgrades

Technical Highlights & Typical Dimensions

Example configurations illustrate typical industrial JETPulse unit footprints. Final sizing, air volume capacity, and duct layouts are always project specific.

  • Physical footprint: Highly compact 6 m3 structural footprint class.

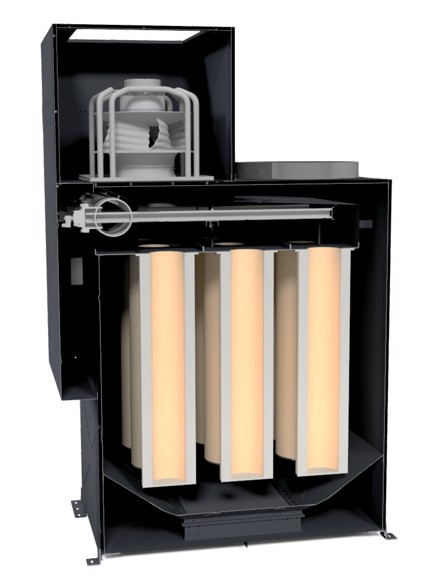

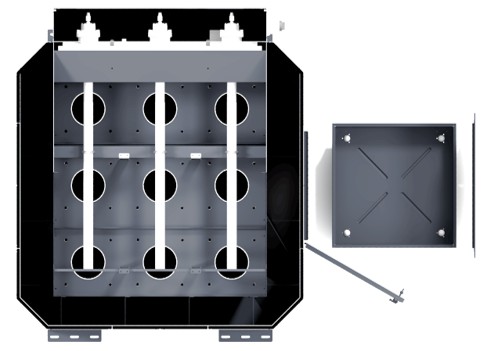

  • Filter media dimensions: Includes 9 rugged JETPulse filter elements of 1400 mm length to maximize active surface filtration area.

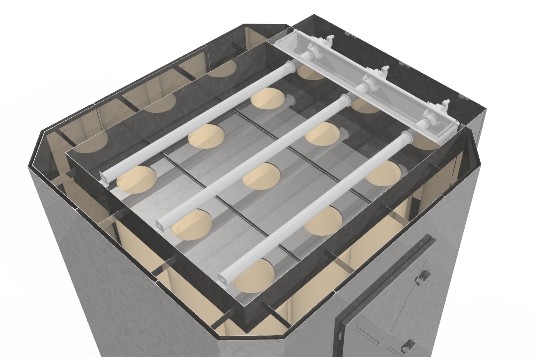

  • Pneumatic cleansing: Integrated high-impact 8-bar system utilizing an 8″ pneumatic tank and three 2″ blast pipes.

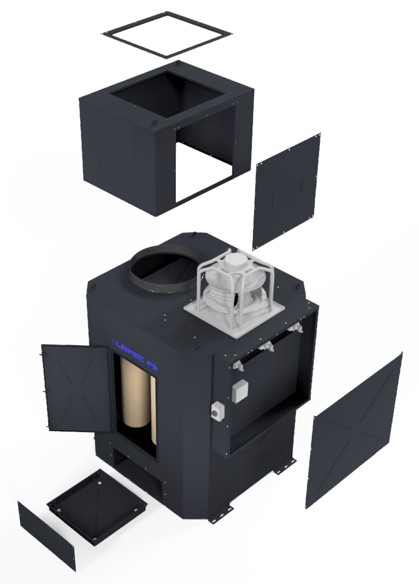

  • Modular logistics: Features a bolt-on fan housing extension (offering straight or 90° air utlets) that simplifies shipping dimensions and on-site crane handling.
Leimec JETPulse

Unit size

  • Standard airflow rating: 6 m³/s base model with 9 filters
  • Scalable up to 8 m³/s and 10 m³/s

Key Functions & Options

  • Automation: Standalone system with automated compressed air cleaning, or integrated into process controls.
  • Service hatches: Quick-access panels for fast fan, pneumatic tank, and electrical maintenance.
  • Sealed collection: Hermetically sealed 50-liter dust bin to prevent secondary contamination during disposal.
  • Hopper design: Steep 55° walls for continuous flow, with an internal floor grating for safe filter swaps.
Contact us
Leimec JETPulse

Image gallery

Leimec JETPulse
Leimec JETPulse
Leimec JETPulse
Leimec JETPulse

Download Product Data Sheet

Fill in your email address to get the product data sheet (PDF)

Why Leimec

Proven Track Record – Over 30 Years

  • 2,500+ projects worldwide
  • 10,000+ Leimec ventilation units installed

Leimec ventilation units are designed for easy replacement of existing systems, reduced power consumption through optimized sizing, and long service life using corrosion-resistant materials. Our solutions are suitable for seismic zones, high wind loads, and allow for future upgrades in filtration efficiency and noise control.
