Leimec AirCycle

A compact, highly efficient indoor air purification unit engineered to recirculate and clean dusty hall air, returning it directly to the workspace. Sized for a minimal space footprint, the Leimec AirCycle is specifically designed for existing industrial sectors with light-to-moderate dry dust loads. By filtering air to a clean, safe recirculation grade, it eliminates the need for expensive outdoor exhaust ducting and significantly reduces facility heating costs.

Leimec AirCycle

Key Benefits

  • Eco recirculation: Retains heat to cut heating costs
  • Compact retrofit: Lightweight, minimal footprint for easy installation
  • 2-stage filtering: Separate filter replacement intervals minimize costs
  • Flexible control: Runs standalone or integrates into Building systems
  • Easy maintenance: Tool-free dry filter replacement.

Technical Highlights & Typical Dimensions

Example configurations illustrate typical industrial AirCycle unit footprints. Final sizing, air volume capacity, and duct layouts are always project specific.

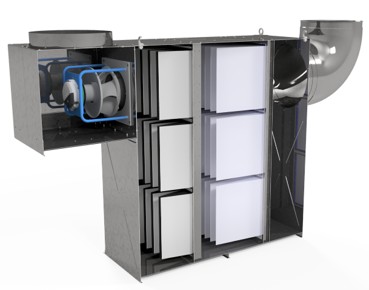

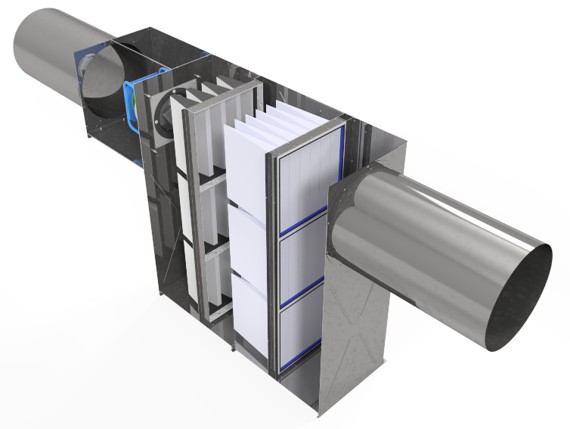

  • Multi-stage filtration sizing: Features a 550 mm pocket prefilter (housed inside a spacious 750 mm chamber clearance) coupled with a 300 mm primary HEPA filter (550 mm total installation clearance).
  • Universal filter media: Open, adaptable chamber engineering allows easy switching to alternative filter types if factory processes or dust profiles shift.
  • Pressure regulation: Controlled radial duct fan maintains stable flow rates.
  • Aerodynamic outlets: Flexible clean air discharge available via straight or 90° duct connections.

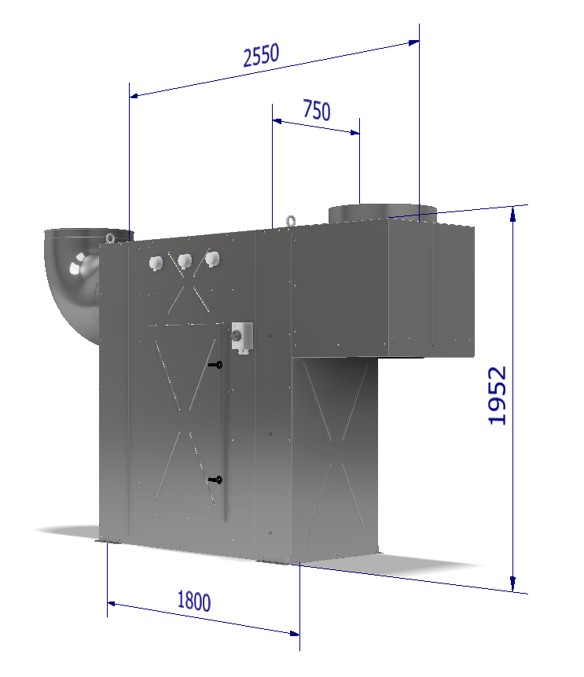

Leimec AirCycle dimensions

Key Functions & Options

  • Pressure monitoring: Integrated filter sensor provides a local visual gauge or transmits a signal to remote systems.
  • Control autonomy: Operates as a standalone independent unit or integrates into the building’s central BMS/ventilation.

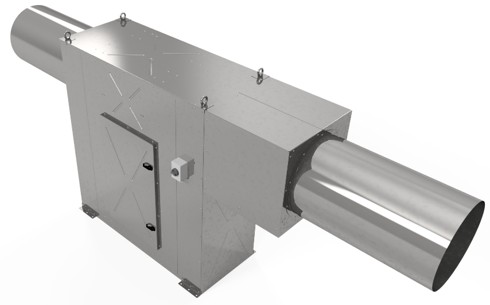

  • Service access: dedicated fan hatch and large service door alow rapid, tool-free filter replacement.
Contact us
Leimec AirCycle

Image gallery

Leimec AirCycle
Leimec AirCycle
Leimec AirCycle

Download Product Data Sheet

Fill in your email address to get the product data sheet (PDF)

Why Leimec

Proven Track Record – Over 30 Years

  • 2,500+ projects worldwide
  • 10,000+ Leimec ventilation units installed

Leimec ventilation units are designed for easy replacement of existing systems, reduced power consumption through optimized sizing, and long service life using corrosion-resistant materials. Our solutions are suitable for seismic zones, high wind loads, and allow for future upgrades in filtration efficiency and noise control.
